Coire Glas scheme

Coire Glas is an up to 1500MW hydro pumped storage scheme, which is the first new large scale pumped storage scheme to be developed in the UK for over 30 years.

Pumped storage schemes involve two bodies of water at different heights. During periods of low demand and/or surplus generation, electricity is used to pump water from the lower loch to the upper reservoir, storing energy. The energy is released by using the water to generate hydro-electricity at a time when demand is high and/or other variable generation is low. Coire Glas is an excellent pumped storage site with a large lower reservoir (Loch Lochy) and a significant elevation of more than 500m between the lower and the new upper reservoir site over a relatively short distance.

In December 2013 SSE was initially granted planning approval for a 600MW pumped storage hydro scheme at Coire Glas. We are awaiting a decision on a revised application for an up to 1500MW scheme. The changes were aimed to maximise the potential of the site and help provide the energy storage UK energy market needs in its transition to a net zero carbon energy system by 2050.

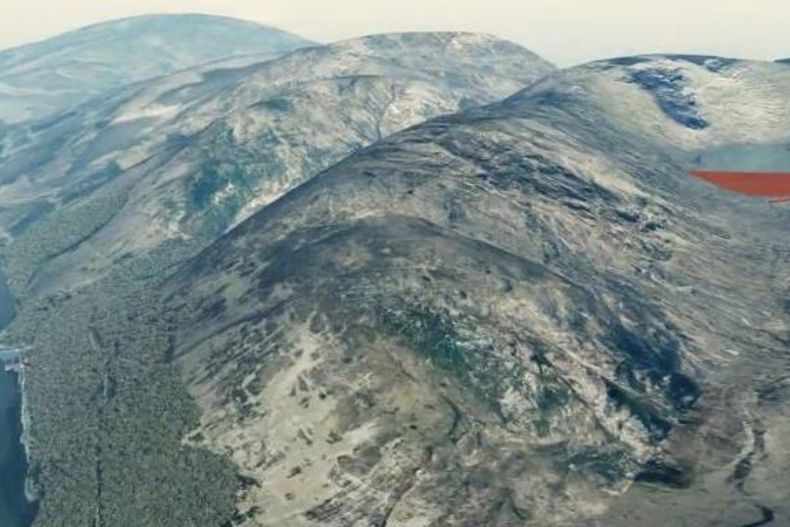

The scheme will be based on the northern shore of Loch Lochy to the south west of Laggan Locks. The upper reservoir works, including the construction of the dam, would be accessed from the A87 at Whitebridge utilising existing forestry tracks and the creation of a new track to the dam site. The lower reservoir works, including the outlet area and entrances for the underground works, would be accessed from the A82 at North Laggan.

WHY PUMPED STORAGE

Challenges:

  • Electricity demand is expected to grow with the move to electrify transport, heat and industry.

  • The grid has shifted from being driven by fossil fuels to a lower low carbon generation mix. Increasing further levels of low cost renewables in the UK will provide a plentiful but weather dependent level of generation

  • The UK electricity network has to adapt to meet the decarbonisation challenge

Responses:

  • Pumped storage is a proven technology that is well placed to help ensure a secure supply of electricity across the UK. This is particularly true for an electricity system with high levels of renewable generation.

  • Pumped storage has a fast response time, which means that it can respond quickly grid changes and support grid stability. This could be needed in case of an unexpected plant or interconnector failure, as cover for variable renewable generation, or to respond to sudden increases in demand. It can start generating electricity in less than 30 seconds when in a spinning cycle and within just 2 minutes from rest.

  • Pumped storage is also the most efficient of currently available large scale technology, at up to 80% total efficiency. It is able to store and flexibly provide reliable electricity over an extended period of time. Once developed, pumped storage has a long operational life, with low running costs.

WHY COIRE GLAS

Coire Glas, like all hydro pumped storage schemes, will be a major civil engineering construction project and has an estimated construction time of 5-6 years. A project of this scale has a high initial upfront construction cost but low operational costs and a very long operational life (50 years +). Of the project estimated cost of over £1 Billion, more than 70% is in the civil engineering structures. This investment therefore will be spent directly in the UK and the specifically in the Scottish Highlands with the associated job and other benefits that will bring.

Coire Glas will have a fast response and a large storage capacity. This means that the scheme can provide the minute to minute, hour to hour energy balancing services to the grid but also sustain these services for long periods, up to days at a time if needed.

In the event of an unexpected failure elsewhere on the UK grid, Coire Glas can provide the necessary input of large amounts of energy to support the network.

REDUCTION IN THE DAILY COSTS TO THE CONSUMER

  • Reduces peak wholesale prices of electricity

  • Reduction in the cost of constraining excess renewable generation

  • Reduction in the costs of managing transmission system constraints

  • Reduction in the cost for network stability and security management

WIDER BENEFITS TO SOCIETY

  • Avoided investment costs for other low carbon generation capacity

  • Reducing and delaying the need for capacity upgrades to the transmission network

  • Helping ensure low carbon value is retained in the UK by reducing low price exports and high price imports through interconnectors

  • Investment in a large civil engineering works will boost the UK and Scottish economies in this critical time

BENEFITS TO THE ELECTRICITY NETWORK

  • Providing much need rotating inertia to help with frequency regulation

  • Dynamic fault current injection for fault protection systems

  • Fast acting and large scale dynamic load following

  • Adding resilience to the system with large Blackstart capacity for re-energisation in times of blackout

SUMMARY

Coire Glas once operational will bring a wide range of benefits and savings to the electricity system and UK consumer.

In the drive to a net zero carbon electricity system, the UK government has created mechanisms to de-risk other electricity infrastructure investments to drive forward the low carbon agenda such as Contracts for Difference for Nuclear power, offshore wind, onshore wind, and cap and floor support for interconnectors. There is currently no mechanism to de-risk electricity storage invesment.

We are working proactively with Government and regulatory bodies to explore opportunities for securing investment in Coire Glas and other long term storage to secure the benefits to UK consumers and society that they bring.

Title

Values

Location

South west of Laggan Locks near Loch Lochy, Highland

Ownership

SSE

Proposed MW capacity

1500MW pumped storage

Contact

Chris Bell, chris.h.bell@sse.com
